520 mm 3-frame honey extractor BeeFun®

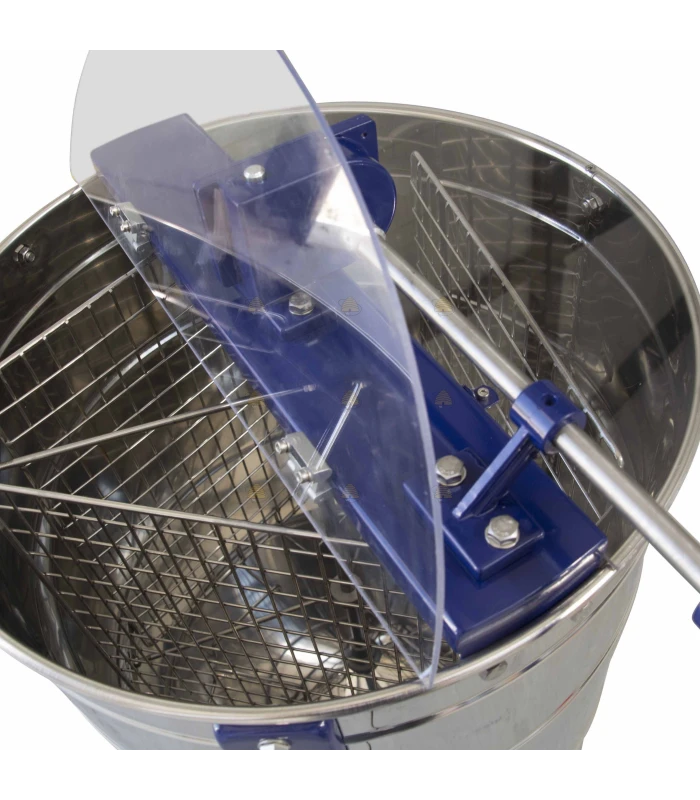

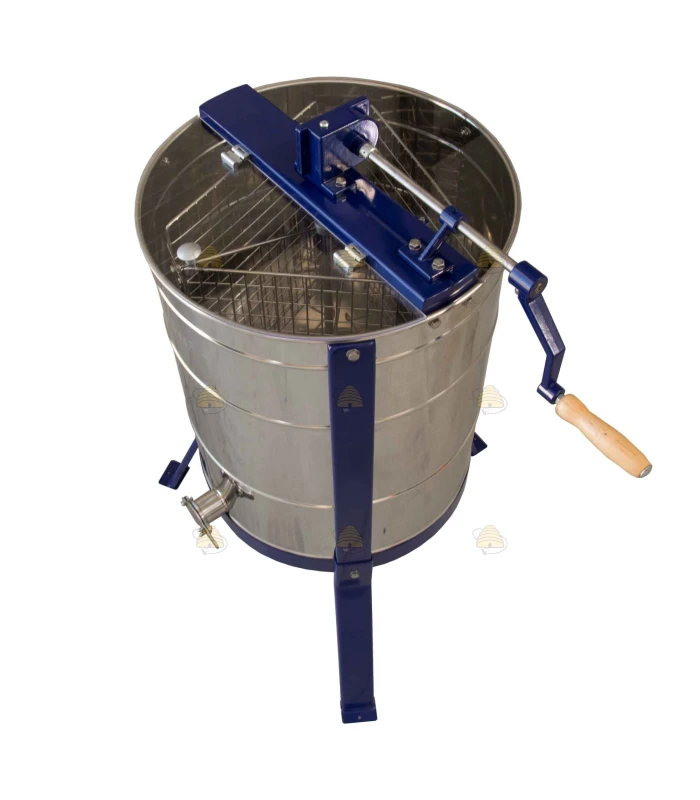

520 mm 3-frame manual honey extractor by BeeFun. This honey extractor features a stainless steel drum with very sturdy blue-coated legs and a stainless steel honey gate. The basket inside the extractor has a fine mesh with no sharp edges and is suitable for hive frames up to a maximum size of 44 x 34 cm. The drum has a sloped bottom so no honey is left behind in the extractor. There is clearance for a bucket up to 33 cm high to collect honey from the stainless steel honey gate. The honey gate is made of stainless steel with a rubber gasket so it does not leak, and it is mounted extra low in the bottom.

This honey extractor is manufactured in Europe.

Additional details:

• Inner diameter of honey gate: 4.5 cm
• Honey extractor material: stainless steel
• Lid: plastic
• Reinforcement band at the bottom of the drum
• Wooden crank handle
• Honey extractor height: 110 cm
• Drum height: 59 cm
• Thickness of the stainless steel drum is 0.5 mm

This extractor fits 3 simplex brood box frames or 6 simplex honey super frames.

Need advice? Feel free to contact us.

Please note: this extractor is delivered as a ‘kit’. This means that both the legs and the crank arm, etc., still need to be assembled. The drum with drive weighs approximately 18.5 kg and the legs 4.5 kg.

Tip: Rubber feet so the extractor slides less during extraction. These rubber feet also protect the floor against scratches.
