520 mm 4-frame honey extractor BeeFun®

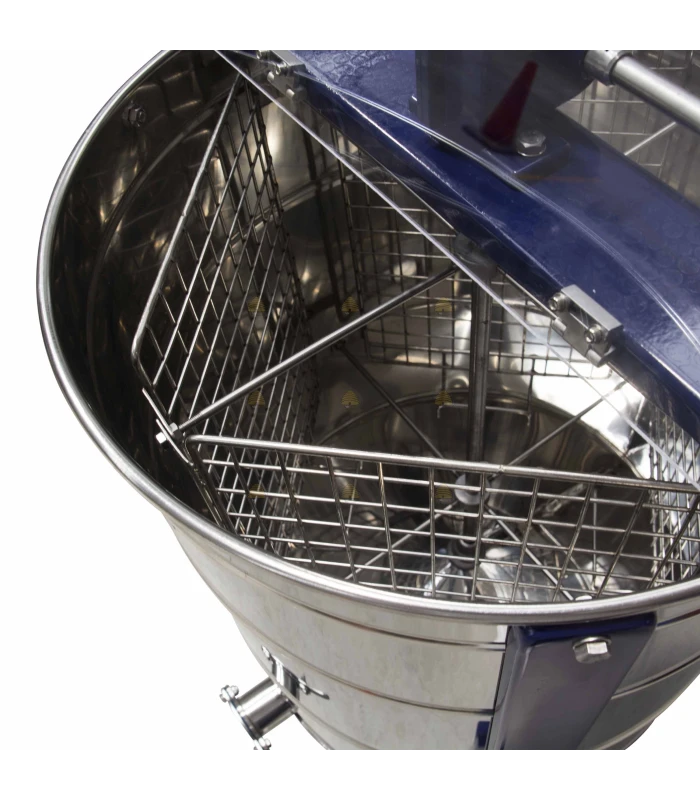

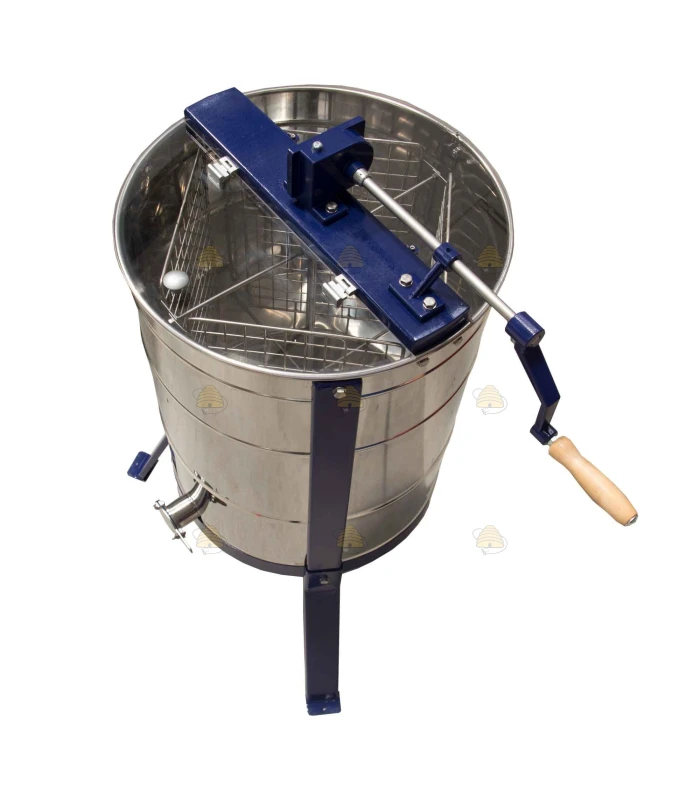

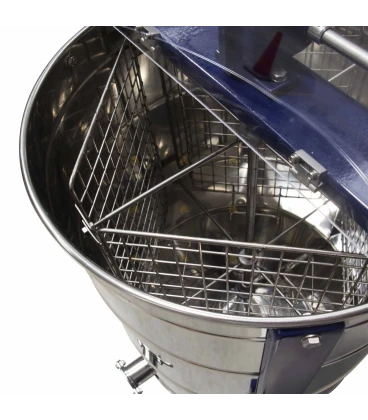

520 mm 4-frame manual honey extractor by BeeFun. This honey extractor has a stainless steel drum with very sturdy blue‑coated legs and a stainless steel honey gate. The basket inside the extractor has a small mesh with no sharp edges and fits frames up to a maximum size of 42 x 26 cm. The drum has a sloped bottom so no honey is left behind in the extractor. To collect the honey from the stainless steel honey gate, there is room for a bucket with a maximum height of 33 cm. The honey gate is made of stainless steel with a rubber gasket so it won’t leak, and the honey gate is positioned extra low in the bottom.

This honey extractor is manufactured in Europe.

Other details:

• Inner diameter of honey gate: 4.5 cm
• Honey extractor material: stainless steel
• Lid: plastic
• Reinforcing ring at the bottom of the drum
• Wooden crank handle
• Honey extractor height: 110 cm
• Drum height: 59 cm
• Drum wall thickness: 0.5 mm

This extractor fits 4 simplex brood box frames or 4 honey super frames and, with a bit of careful shuffling and/or by fitting them double at the top bar, just about 8 simplex honey super frames.

Need advice? Feel free to contact us.

Note: this extractor is supplied as an ‘assembly’ kit. This means the legs, crank arm, etc. still need to be assembled. The drum with drive weighs approximately 18.5 kg and the legs 4.5 kg.

Tip: Rubber feet so the extractor slides less when extracting. The floor is also protected from scratches with these rubber feet.
